Water Application

Water Application Components

Water conservation is a critical issue -- not only for producers, but for the industry. The right application components can help you conserve resources and increase yield.

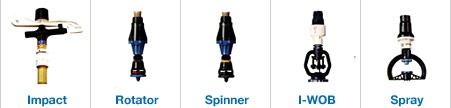

Sprinkler Options

Maximize uniform delivery to the root zone and minimize runoff. We offer low, medium and high-pressure sprays and impact sprinkler to match your soil type and condition.

Mounting12' above ground6' above ground6' above ground6' above ground6' above groundPSI3025151515Wetted Diameter74-84'54-66'44-54'40-53'34-41'22.5 - 25.5m16.5 - 20m13.4 - 16.5m12.2 - 16.2m10.5 - 12.5m

Pressure Regulators

We recommend pressure regulators for application uniformity on low pressure systems with variable terrain. Choose from a variety of pressure regulator packages.

Low Energy Precision Application (LEPA) is designed to counter the high cost of fuel and diminishing water supplies. This application method utilizes extremely low pressures (10 psi or less) putting water directly into crop furrows, reducing evaporation loss and increasing application efficiency.

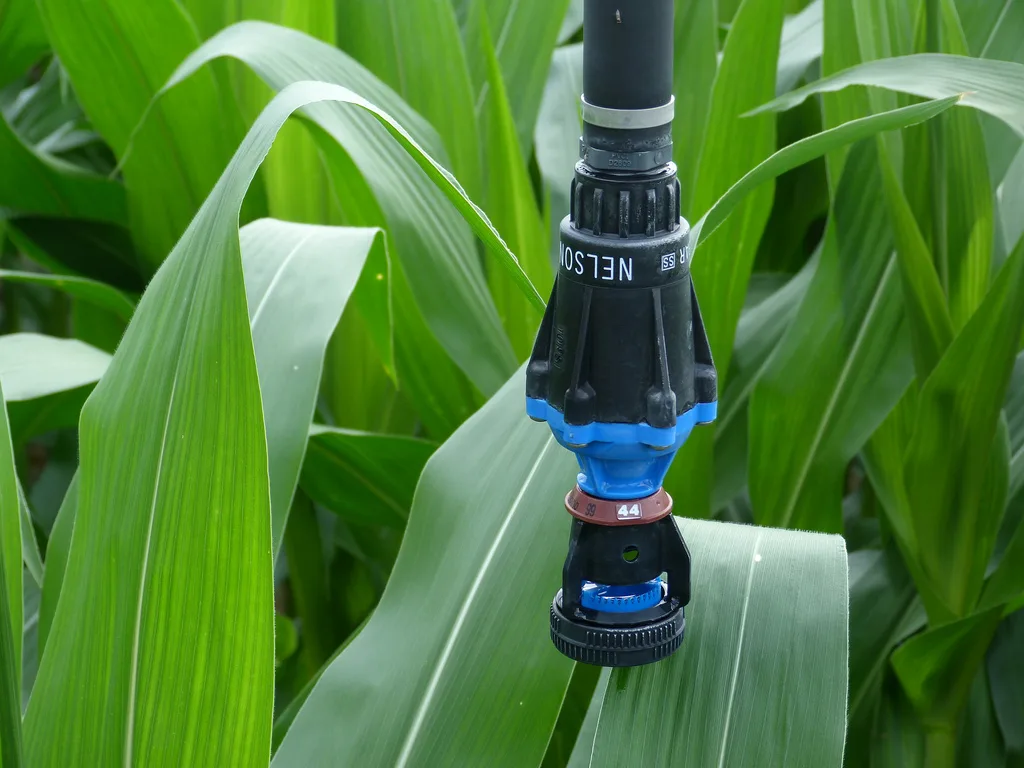

Low pressure sprinkler bodies, include (left) D3000 and (right) LDN. Each is mounted with drop weights.

Choose Your Sprinker

SprinklerField Slope DeviationEnd PressureSoil Intake RateLocationLow Angle ImpactsExtreme25 to 50 PSILow-MediumOn topRotatorsModerate15 to 30 PSILow-MediumOn top or on dropAccelerators/SpinnersModerate10 to 20 PSILow-MediumOn dropsI-Wob/NutatorsModerate10 to 20 PSILow-MediumOn dropsSuper SpraysMinimal6 to 25 PSIHighOn top or on dropD3000'sMinimal6 to 25 PSIHighOn top or on dropLDN'sMinimal6 to 20 PSIHighOn dropsQuad SpraysNone6 to 15 PSIVariableOn hose drops

Booster Pumps

Add a booster pump to bring the operating pressure of the gun back into the optimum range when the system is set up with low pressure. This saves money on input costs and still gets the best performance from the end gun.

Reinke’s overhand design allows for booster pump location near the end gun which eliminates friction loss caused by small diameter supply hoses required on last tower mounts. This design maximizes pressure and efficiency to the end gun.

End guns can add profitable acres. The chart will aid in making the proper end gun selection.

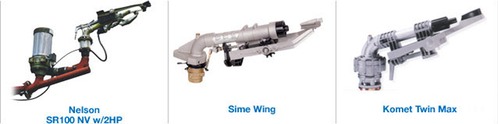

End Guns

Type GunEnd PressureEnd Gun FlowNelson P85A25-40 PSI70 GPM or less35-55 ft. w/ diffuserNelson P85A40-60 PSI90 GPM or less50-75 ftNelson SR7535-75 PSI25-160 GPM60-110 ftKomet Twin Max35-75 PSI25-220 GPM60-125 ftSime Wing50-75 PSI45-230 GPM80-130 ftNelson SR10050-75 PSI50-250 GPM80-130 ft

Booster PumpsFlow RangePSI Boost2 HP50-160 GPM33-26 PSI5 HP80-220 GPM39-30 PSI

We offer a wide variety of sprinkler mounting options to meet your specific needs: rigid Galvanized, PVC, Polyethylene plastic, flexible hose and boom backs.
